Special Transport Wind Blade Semi Trailer with Fuwa 13ton Axle 16000mm3000mm3150mm

Ask Lasest Price
Brand Name :	AOTONG
Certification :	ISO,CCC
Supply Ability :	260 Set/Sets per Month
Price :	$30,000.00/sets 1-1 sets
Delivery Time :	25 days
Payment Terms :	TT

Add to Cart

Product Details
Company Profile

Special Transport Wind Blade Semi Trailer with Fuwa 13ton Axle 16000mm3000mm3150mm

Product Description

Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 20 years of production experience serve for you —AOTONG

Special Transport Wind Blade Semi Trailer with Fuwa 13ton Axle 16000mm*3000mm*3150mm

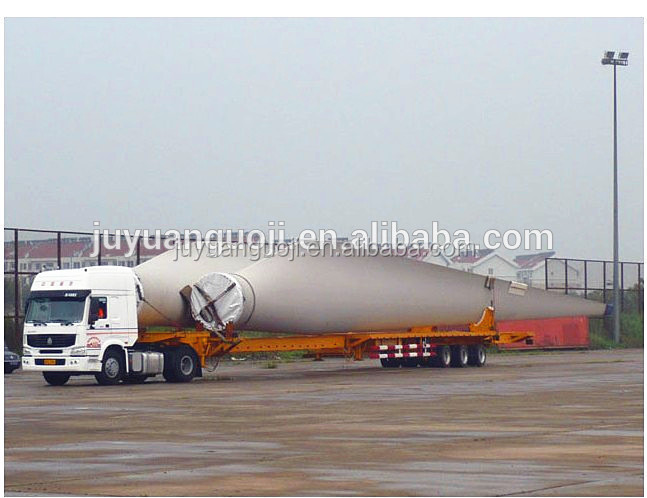

wind turbine blades trailer
Outside dimensions (LxWxH)	18000mm3600mm5500mm
Related load
Tare weight	32 tons
Axle	4 lines 8 axles
Tyre	32pcs 8.25R/16 Triangle
Rims	32pcs 6.0
King Pin	90#
Landing gear	28 tons
Suspension	Mechanical suspension
Leaf springs	10pcs
Material of the main beam	Height :500mm,uppper 30mm,bottom 30mm, middle(14+14)mm
Braking system	Break valve
double air chamber	double air chamber
Electrical	LED light, 7 way, 24V
Accessory	One tool box with a set of standard tool
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
Spare wheel carrier	1 set
Color	Customized
Tooling configuration parameters
Upper turning support	The outer flange diameter of the lower rotary support meets three specifications,The maximum installation diameter is 3350mm	Two hydraulic motors and two hydraulic cylinders diameter 220mm
Down turning support	Rotary support diameter 3150mm support	Three hydraulic motors
Tooling beam size	900mm(max height)
Beam power unit	Diesel engine 25 horsepower
Hydraulic pump oil box, etc

AOTONG modular trailer can satisfy the concentrated force, the anti bump and the distortion resistance.

AOTONG make sure that modular semi trailer can meet load requirements on different kind of roads and has a long service life.

We start from every detail, carefully craft to customize your high-quality semi trailer.

Excellent design ability

We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

Popular Colors and High Quality Painting

We use high quality paint to make our products beautiful, seamless, dustproof and easy to clean.KTL electrophoresis + powder
spraying, instead of traditional paint process to make a good bond with a solid base, good wear resistance, durability and has
good anti-corrosion effect and long paint life.
Which color do you want to customize, click to get more!

Related Products

We also have rich production experience in the following models.

If this item is not what you like, then we suggest these items：

Click to get the models that have been shipped to your country！

2 axles lowbed semi trailer

3 axles lowbed semi trailer

4 axles lowbed semi trailer

Multi axles lowbed semi trailer

Extendable lowbed semi trailer

Detachable gooseneck semi trailer

Modular trailer

Multi line axle lowbed semi trailer

lowbed semi trailer with side wall

Our lowbed semi trailer ladder has a rib design to increase its load carrying capacity.
A variety of ladder can be selected, ordinary ladder, spring ladder, hydraulic ladder, hydraulic folding ladder. The spring ladder can be lowered by its own weight. Hydraulic ladder reduces labor strength. Folding the ladder will lower the up and down slope.

Packing&Shipping

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.

High quality painting and professional transportation ensure good condition of goods.

We believe that we can win-win by providing detailed services.
