"Aotong" Brand Lowboy trailers

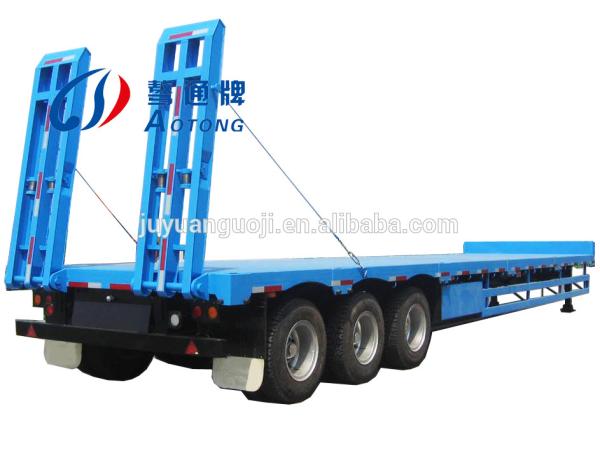

Multi Axles Lowbed Mafi Truck Trailer (Roll Trailer For Heavy
Machines)
Model | Outside Dimension (L×W×H)(mm) | No. of Axle | Tire size | Self Weight (kg) | Rated Load (kg) |
LAT9420TDP | 17500X3000X3150,1710 | 3 | 11R22.5 | 8500 | 60000 |
Manufacture | Shandong JUYUAN Automobile Technology Co.,Ltd |
Main Frame | Q235B manganese plates,automatic submerged arc welded |
Floor | Steel Sheet 3mm thickness or diamond plate (Also can choose other thickness,such as 2mm,2.3mm,4mm,5mm,6mm) |
Side beam | 16# channel beam |
Axle | Brand: FUWA/13T lengthen axle(BPW optional) |
Suspension | Independent stamping steel rigid suspension( air suspension) |
King Pin | 2"or 3.5"traction pin made in China( Jost optional) |
Landing Gear | chinese brand (JOST optional) |
Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
Braking System | Kemi or other Brand of China; ABS (optional ) |
Brake Air Chamber | Four double and two single chamber |
Electrical System | 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness) |
Painting | Sand blasting processing clean rust 1 coat of anticorrosive primer 2 coats of finish urethane paint Color as customer choice |
Accessory | One tooling box with a set of standard trailer tool |
Usage | Is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products. |
Other Descriptions | The cargo platform is lower than others, is applicable for unsound road condition, ensuring the stablenessof the transportation. |
Other Specifications | The height of the girder is 500mm, the upper wing panel is 16mm,the
bottom plate is 16mm,the wed is 8mm the height of the cargo's carrying platform from ground is 900mm, (ladders belong to optional components), with the overall height of
1710 mm |
Remark | We can design model according to client's requirement |
Packaging & Shipping
There´s no package but we will spary wax before shipment against
saltwater corrosion.
Regarding to the shipping method, you could choose which one is
better for you, by container vessel, Ro-Ro vessel or by bulk
vessel.
Factory Strength
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used |
|---|
| CNC Flame Plasma Cutting Machine | GS | 2 | 4.0 |
| Press Machine | JC21-160 | 4 | 4.0 |
| Hydraulic Plate Bender | WC67Y-200/4000 | 2 | 3.0 |
| Hydraulic Pendulum Plate Shears | QC12Y-12*3200 | 2 | 3.0 |
| Drilling Machine with Jointed Arm | ZN3050*16 | 4 | 4.0 |
| Shaping Machine | BS6065 | 2 | 4.0 |
| Universal Rotary Milling Machine | X6232 | 1 | 4.0 |
| CNC Lathe | EL6140N | 2 | 4.0 |
| Saw Machine | GD4028N | 2 | 5.0 |
| Expander | ZX-3000 | 1 | 3.0 |
| Rolling Machine | W11-4-200 | 2 | 3.0 |
| Automatic Round Welding Machine | W11SNC-10-6500 | 1 | 4.0 |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used |
|---|
| Vernier Caliper | 0.02 mm | 2 | 3.0 |
| Ultrasonic Thickness Gauge | SMART SENSOR | 1 | 3.0 |
| Sound Level Meter | AZ8928 | 1 | 3.0 |
Our Services
THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE):
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY |
MAIN FRAME | FRAME | 18 MONTHS | RUNNING GEAR | AXLE | 18 MONTHS |
SUSPENSION | 18 MONTHS | AXLE BEARING | 18 MONTHS |
KING PIN | 18 MONTHS | WHEEL HUB | 12 MONTHS |
BALANCE ARM | 18 MONTHS | TIRE | 12 MONTHS |
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY |
BRAKING DEVICE | BRAKE DRUM | 12 MONTHS | SUPPORT DEVICE | LANDING GEAR | 12 MONTHS |
BRKE CHAMBER | 12 MONTHS | SPARE WHEEL CARRIER | 12 MONTHS |
AIR RESERVOIR | 18 MONTHS |
ITEM NAME | WARRANTY |
OTHERS | LEAF SPRING | 10 MONTHS |
BRAKE CHAMBER DIAPHRAGM | 10 MONTHS |
EMERGENCY RELAY VALVE | 10 MONTHS |
BRAKE SHOE | 10 MONTHS |
RELAY VALVE | 10 MONTHS |
Shandong Juyuan Automobile Technology Co., Ltd., is a professional manufacturer of varies types of semi trailers
established in 1992 with more than 30 years experience and
well-equipped testing facilities and strong technical force.
With advanced and proven technique in design, exploitation and
production, our products with the brand "Aotong" are widely sold to
countries all over the world with good reputation, enjoying high
popularity in America, the Middle East, Africa, Southeast Asia and
Russia, specially get good feedback from Kenya, Tunisia, Saudi
Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh,
Tanzania, mozambique, Congo, Nigeria, Russia, etc. .
Now we provide more than 60 types of trailers and also our trailers
can be customized according to your specifications and design
drawings. You are warm welcome to contact us and we are ready for
you!!!
