3 Axle Extendable Low Bed Semi/Truck Trailers with 11.00r20 12r22.5 315 385 Tires

Ask Lasest Price
Brand Name :	AOTONG
Price :	$14,500.00/sets >=1 sets
Certification :	ISO,CCC
Delivery Time :	25 days
Payment Terms :	TT

Add to Cart

Product Details
Company Profile

3 Axle Extendable Low Bed Semi/Truck Trailers with 11.00r20 12r22.5 315 385 Tires

Product Description

Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 20 years of production experience serve for you —AOTONG

3 Axle Extendable Low Bed Semi/Truck Trailers with 11.00r20 12r22.5 315 385 Tires

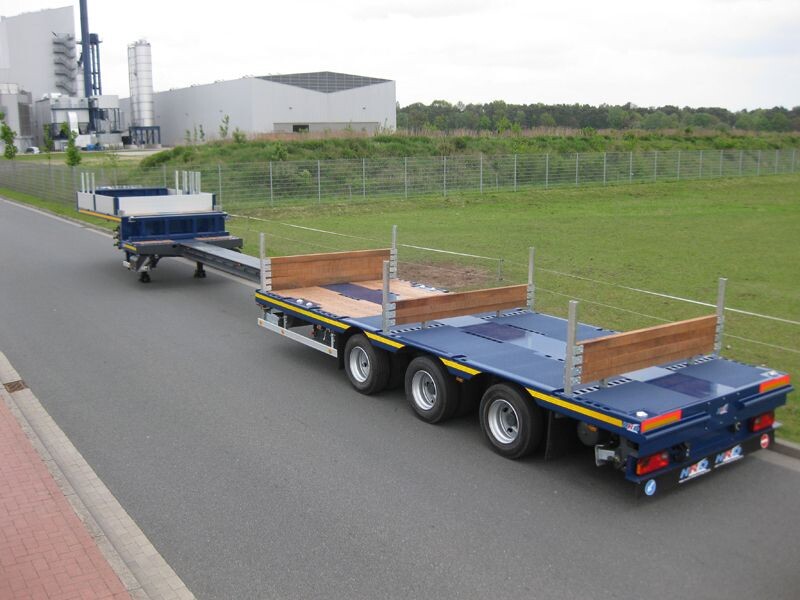

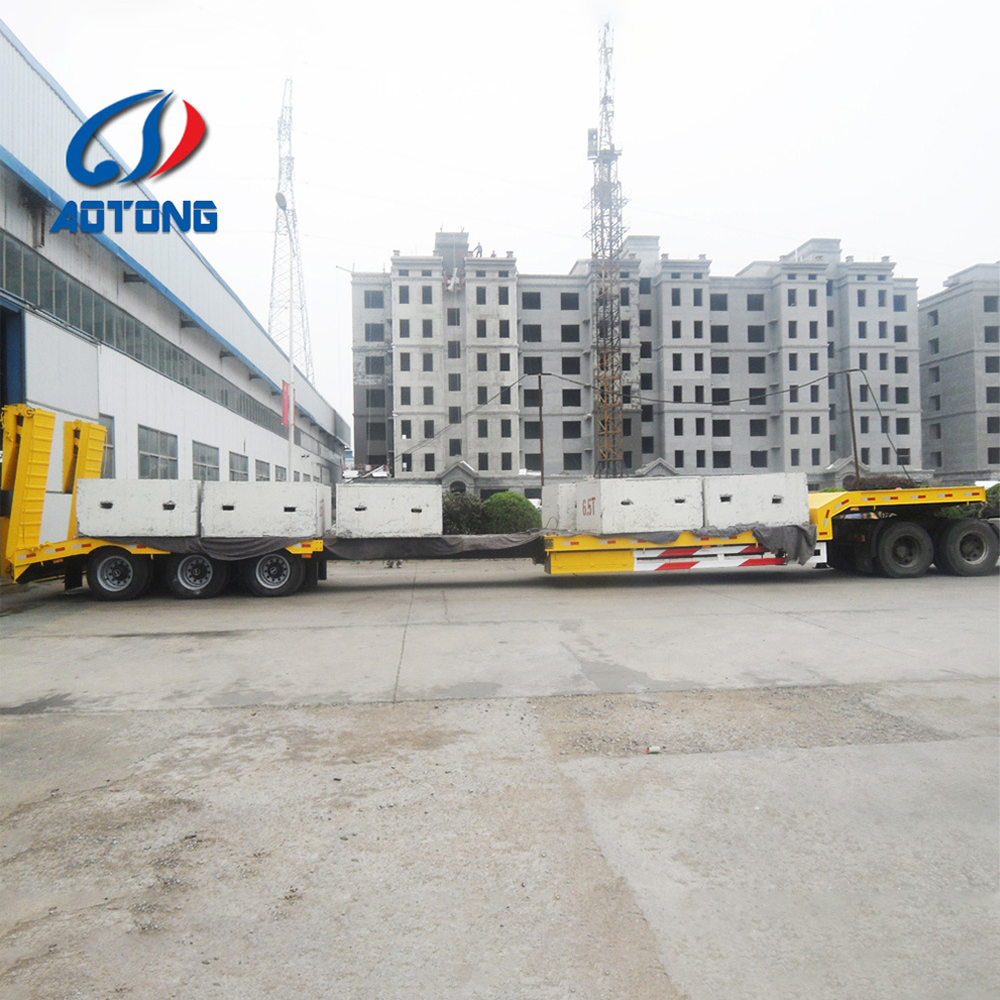

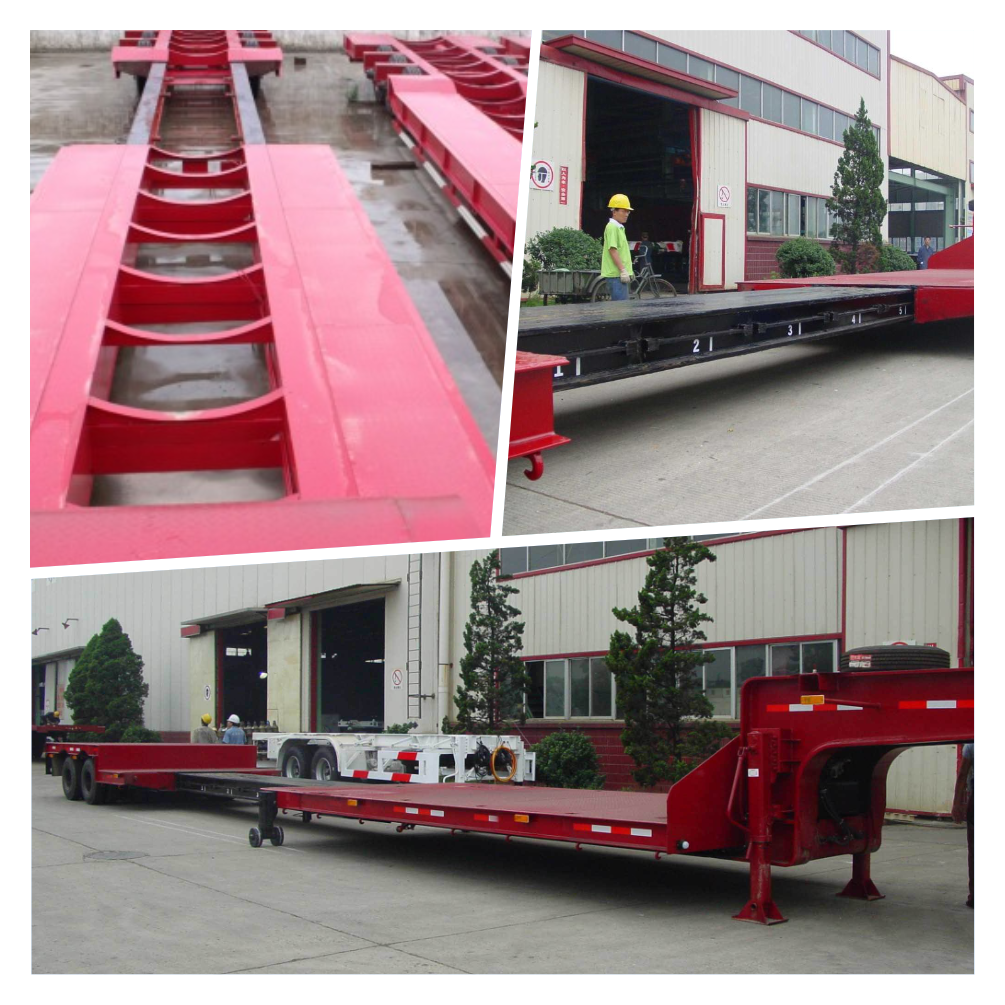

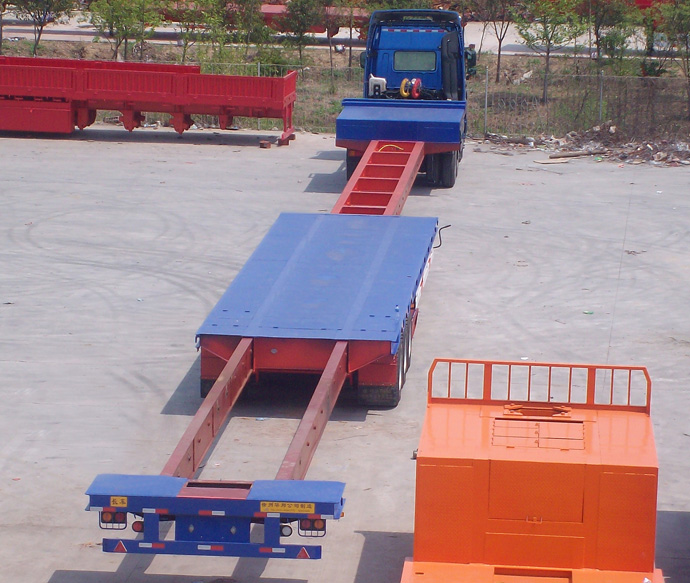

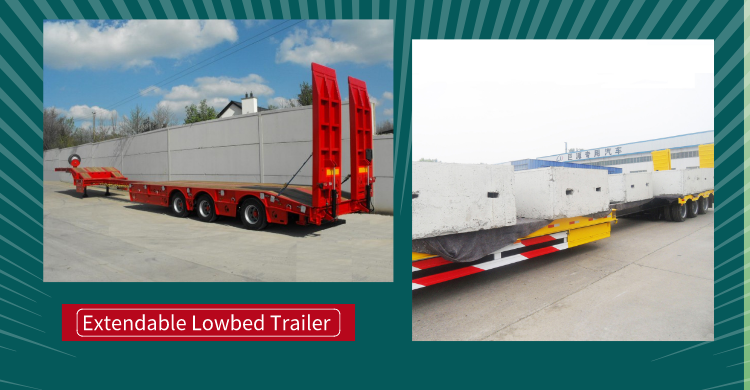

Extendable lowbed semi trailer
Size	1300030001100 (mm)
Extendable length	3000mm-10000mm
Payload	40000KG-60000KG
Main beam	Heavy duty I beam.
Side beam	250mm I beam
Plate	4mm checked plate
Ladder	Mechanical spring ladder or hydraulic ladder
Axles	3 * 13ton capacity (Brand optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 / 11.00R20 12pcs (Other size optional)
Rim	9.00-22.5 / 11.00R20 12pcs (Other size optional)
Kin pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Sand blasting processing clean rust
		1 coat of anticorrosive primer
		2 coats of finish urethane paint
		Color as customer choice
Accessory	One tooling box with a set of standard trailer tool
Usage	Is applicable for the transportations of the mechanical equipment,
		large objects, highway construction equipment, large tanks,
		power plant equipment or machine, and all sorts of steel products.
Other Descriptions	The cargo platform is lower than others,
		is applicable for unsound road condition,
		ensuring the stablenessof the transportation.
Other Specifications	It's concave structured with tyre appeared style,
		the height of the cargo's carrying platform from ground is 900mm,
		(ladders belong to optional components), with the overall height of 1710 mm
Remark	We can design model according to client's requirement

AOTONG modular trailer can satisfy the concentrated force, the anti bump and the distortion resistance.

AOTONG make sure that modular semi trailer can meet load requirements on different kind of roads and has a long service life.

We start from every detail, carefully craft to customize your high-quality semi trailer.

Excellent design ability

We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

Popular Colors and High Quality Painting

We use high quality paint to make our products beautiful, seamless, dustproof and easy to clean.KTL electrophoresis + powder
spraying, instead of traditional paint process to make a good bond with a solid base, good wear resistance, durability and has
good anti-corrosion effect and long paint life.
Which color do you want to customize, click to get more!

Related Products

We also have rich production experience in the following models.

If this item is not what you like, then we suggest these items：

Click to get the models that have been shipped to your country！

2 axles lowbed semi trailer

3 axles lowbed semi trailer

4 axles lowbed semi trailer

Multi axles lowbed semi trailer

Extendable lowbed semi trailer

Detachable gooseneck semi trailer

Modular trailer

Multi line axle lowbed semi trailer

lowbed semi trailer with side wall

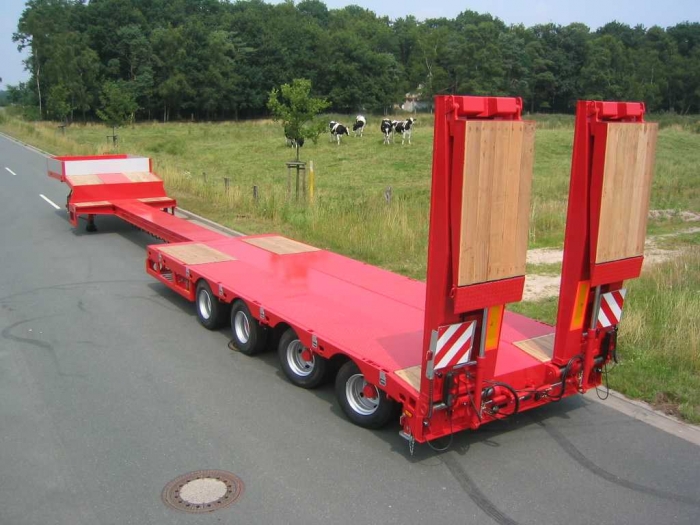

Our lowbed semi trailer ladder has a rib design to increase its load carrying capacity.
A variety of ladder can be selected, ordinary ladder, spring ladder, hydraulic ladder, hydraulic folding ladder. The spring ladder can be lowered by its own weight. Hydraulic ladder reduces labor strength. Folding the ladder will lower the up and down slope.

Packing&Shipping

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.

High quality painting and professional transportation ensure good condition of goods.

We believe that we can win-win by providing detailed services.
