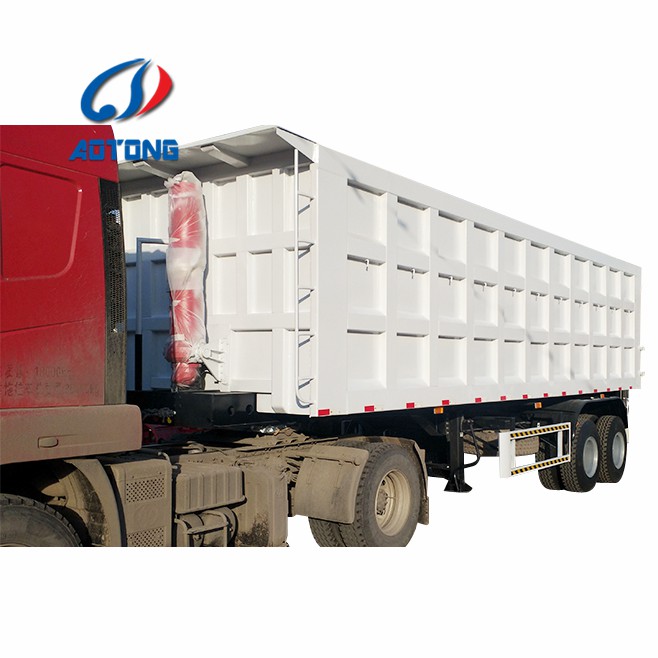

40 Ton Dump Truck Tractor Tipper Trailer Semi-Trailer Sales for Tractor Rim 9.00-22.5

Ask Lasest Price
Brand Name :	AOTONG
Supply Ability :	300 Piece/Pieces per Month
Price :	$19,000.00/pieces 1-2 pieces
Certification :	ISO,CCC
Delivery Time :	25 days
Payment Terms :	TT

Add to Cart

Product Details
Company Profile

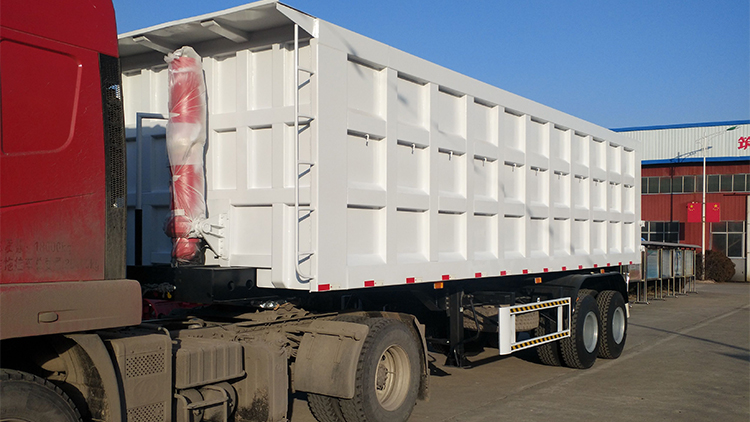

40 Ton Dump Truck Tractor Tipper Trailer Semi-Trailer Sales for Tractor Rim 9.00-22.5

Product Description

Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 30 years of production experience serve for you —AOTONG

40 Ton Dump Truck Tractor Tipper Trailer Semi-Trailer Sales for Tractor Rim 9.00-22.5

Product	Dump / Tipping semi trailer
Brand Name	Aotong Brand
Outside Dimensions (LWH)	8000-12000 * 2500 * 3900 mm
Rated Load	20 - 100 tons
Tare Weight	9-11 tons
Hydraulic Cylinder	HAYA
Tires	Specification			12R22.5 ,11.00R20 or depends on customer
		No. of tires			8/12
		Brand			Double coin, Triangle or Michelin
		Spare tire carriers			2 or 1 including a riser.
Axles	Brand			FUWA (BPW German optional or JINSHENG)
		No. of axles			2/3
		Axle load			13000 kgs
Wheel Rim	8/12 units of 7.50-20 rim or 8.00
Suspension	Leaf spring suspension or air suspension
Pieces of Leaf-spring	10/10/10
Brakes	Brand					WABCO
		Brake chamber					4/6 double chamber
		System					Dual line braking system /ABS
Departure Angle	14
Front/Rear Overhang	1670mm
Main Beam	material	I beam ,Q345B , automatic submerged arc welded
Main Beam		specificat ion	Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 10mm
Cross Beam Material	Q235B
Side Beam	16# channel steel
Plate Form	Steel Sheet 5mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.5mm,3mm,4mm,5mm,6mm)
King Pin	50# or 90#
Landing Gear	Single side operation or double side operation, Static capacity 28Ton
Accessory	One tooling box with a set of standard trailer tool
Electrical System	24V, 7core socket, lights according to European standards.
Painting	Surface preparation by shot blasting. One coat of oxide primer. Two coats of enamel paint, color to be advised during construction,Any color available as client’s need.

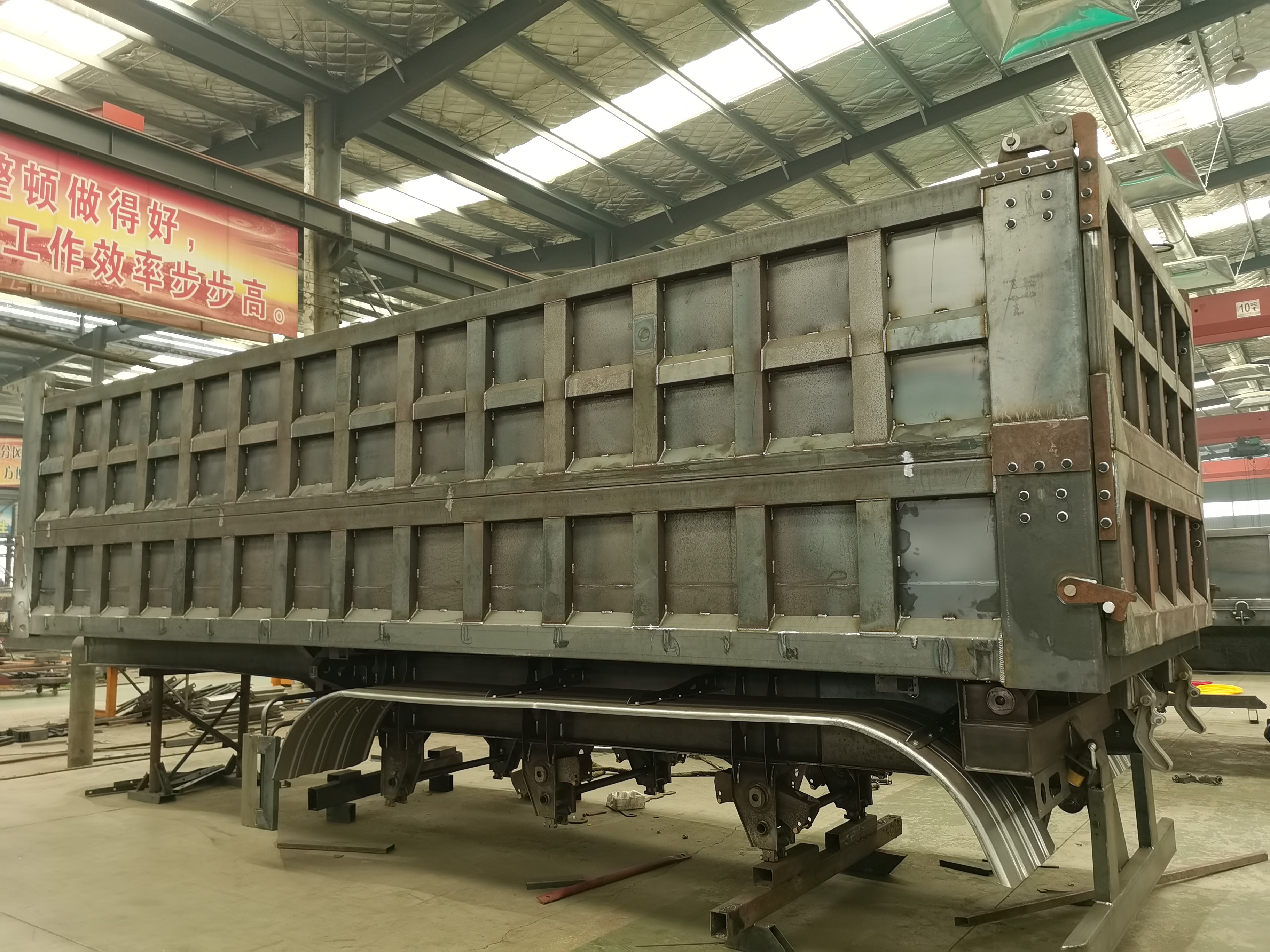

AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.

Excellent design ability

We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

Related Products

We also have rich production experience in the following models.

If this item is not what you like, then we suggest these items：

Click to get the models that have been shipped to your country！

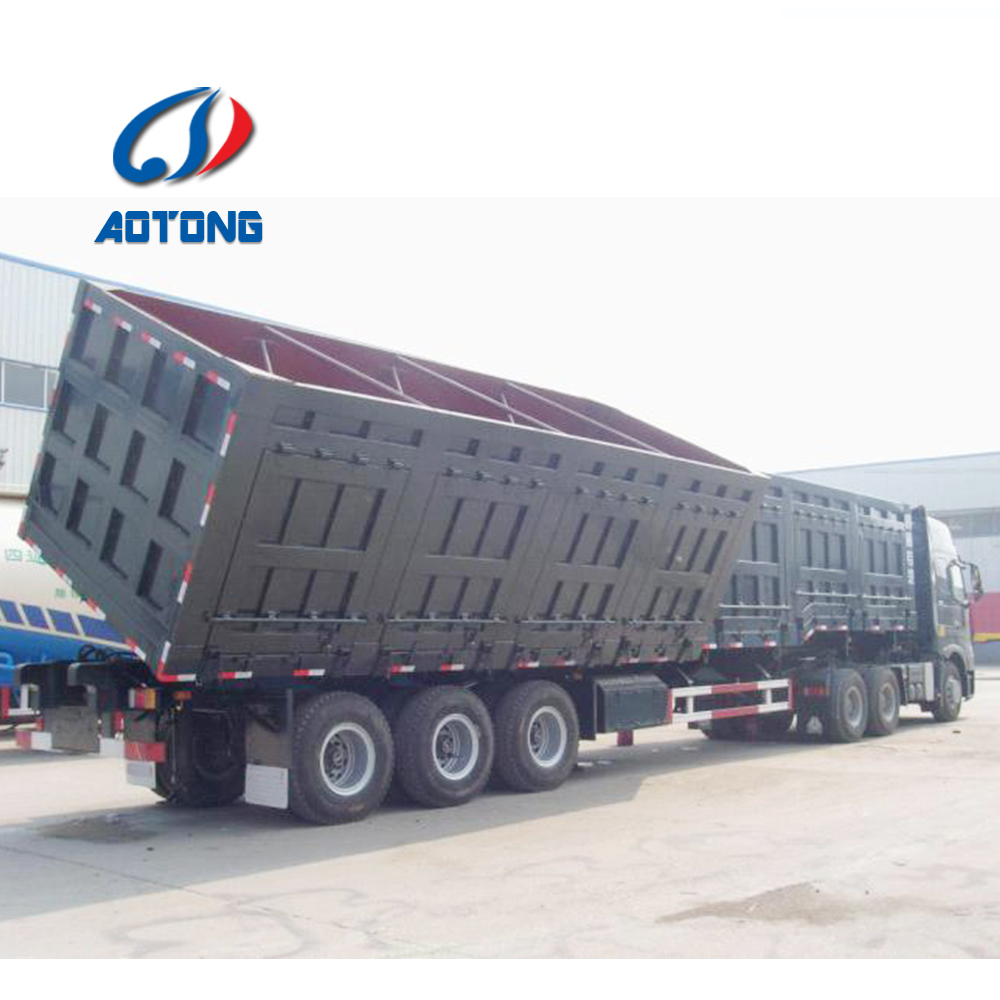

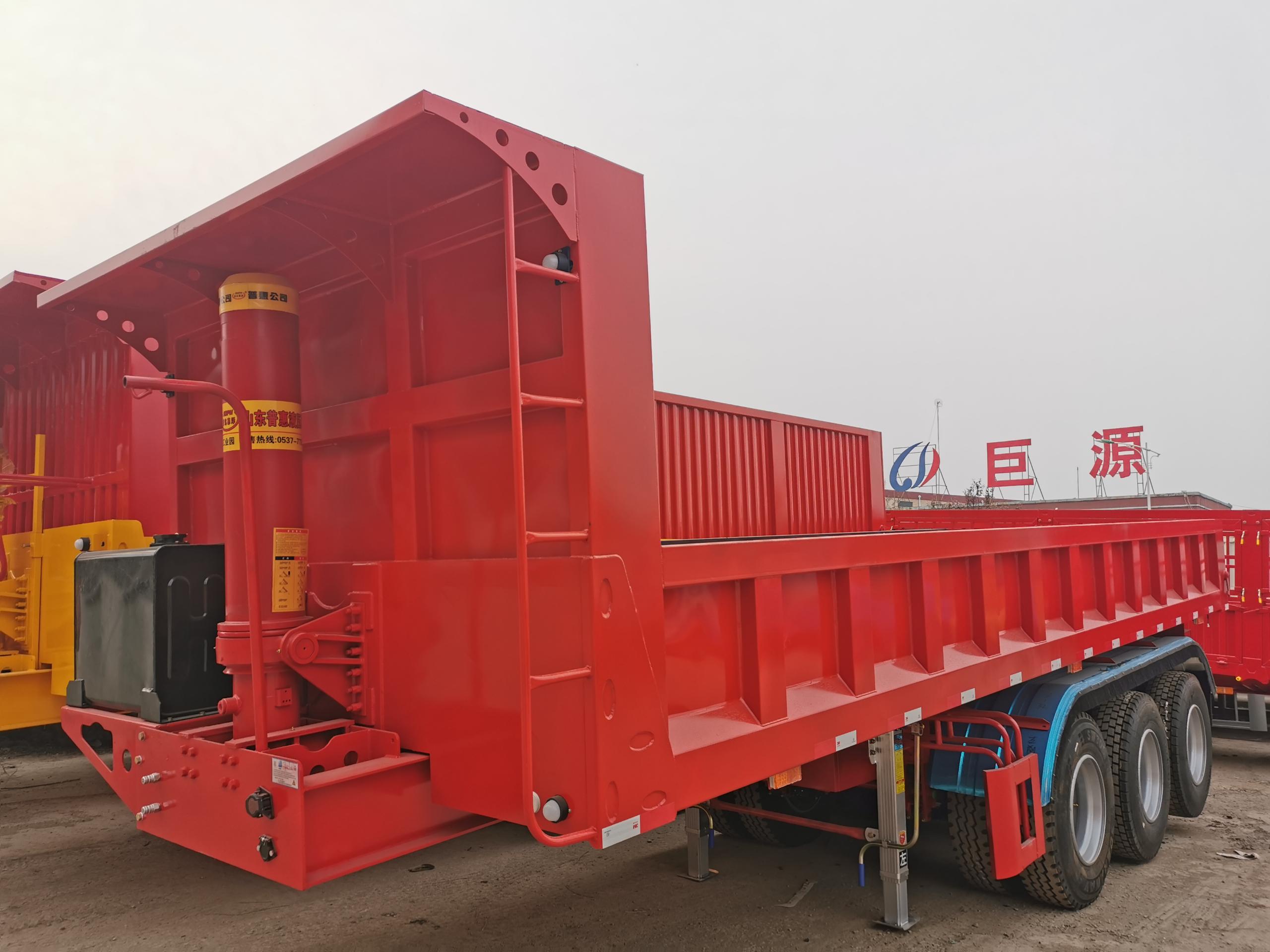

2 axles u type tipper semi trailer

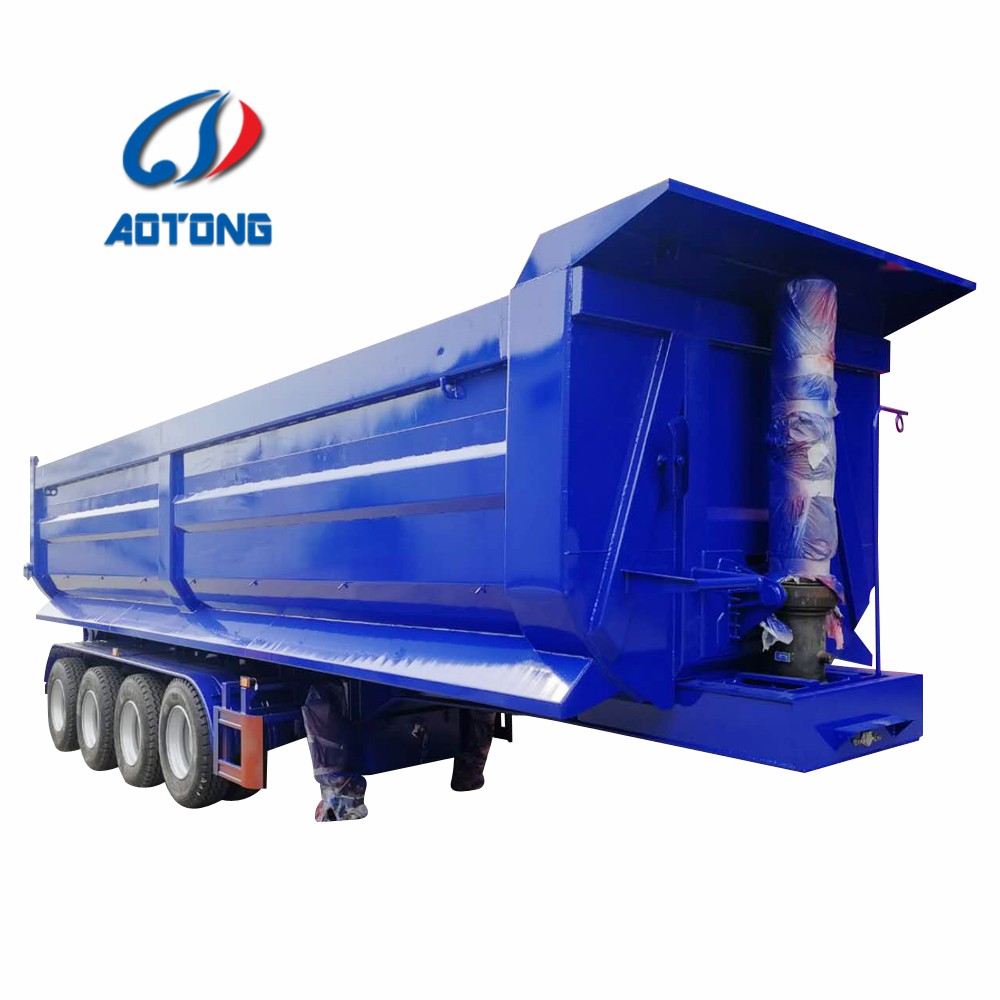

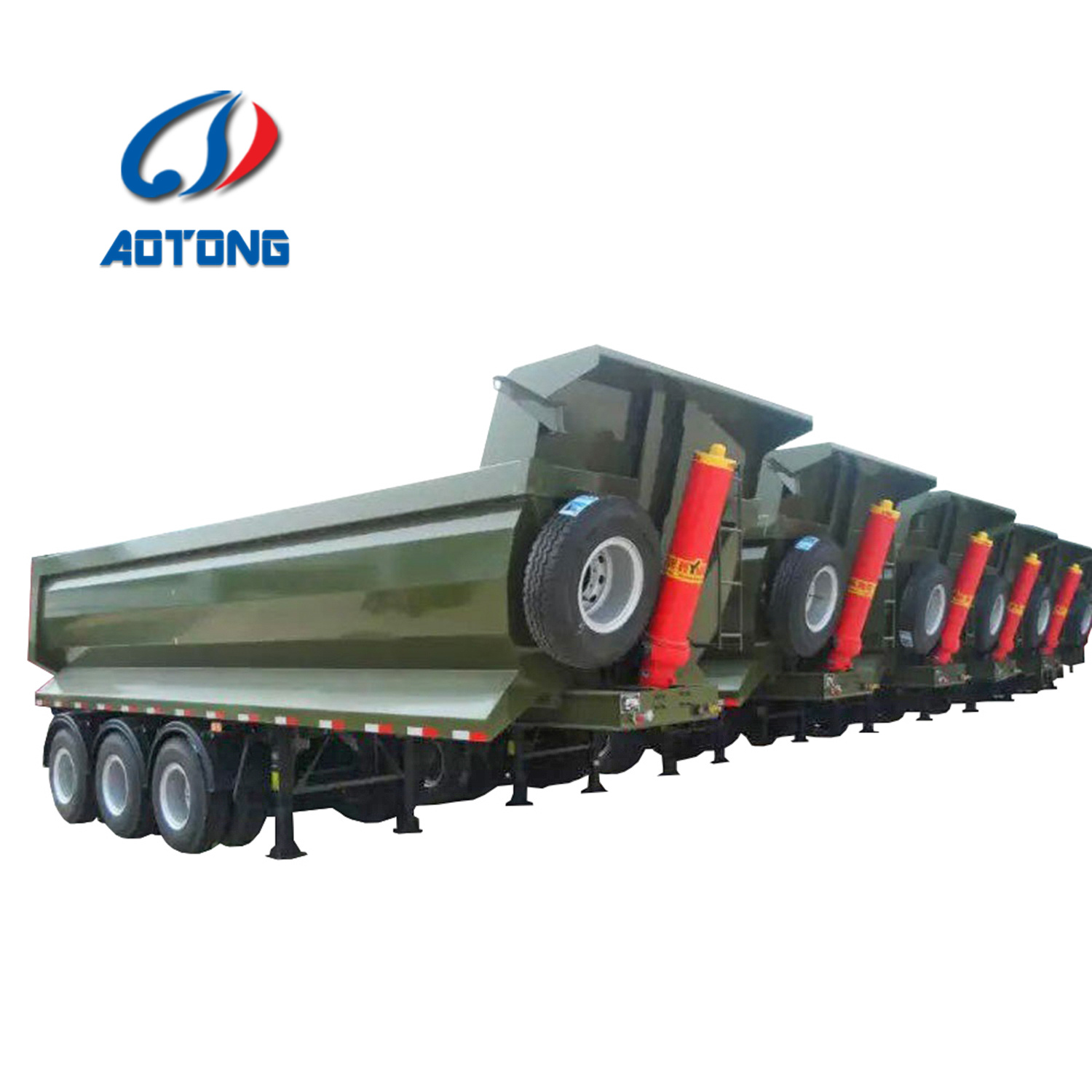

3 axles u type tipper semi trailer

4 axles u type tipper semi trailer

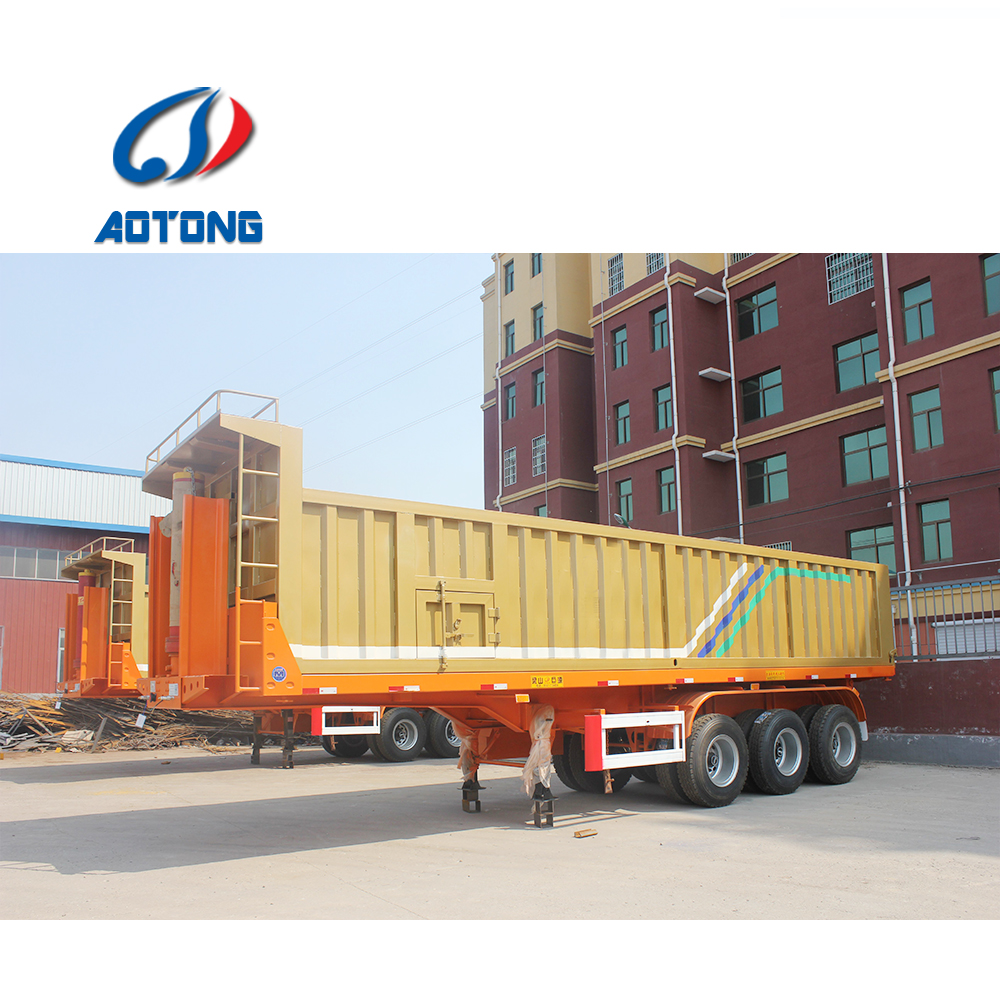

2 axles tipper semi trailer

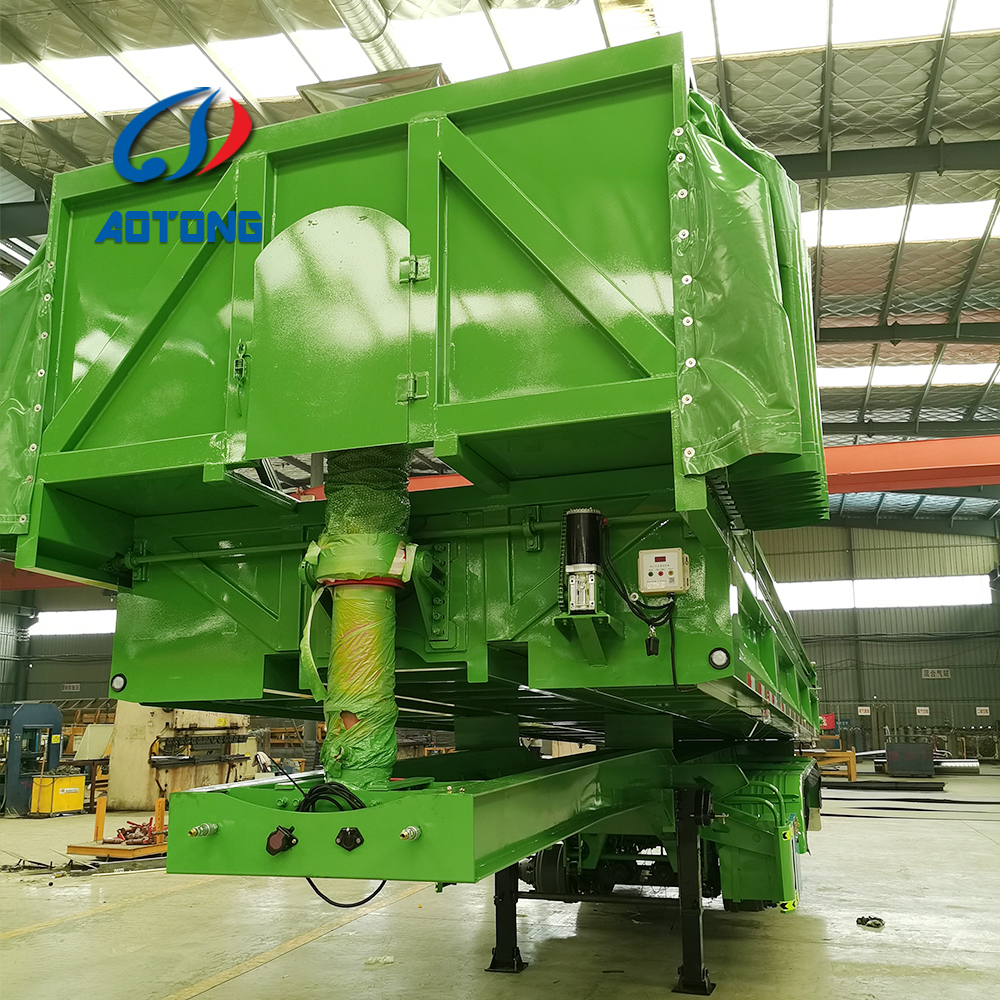

3 axles dump trailer with autometical/manual contral tarpaulin

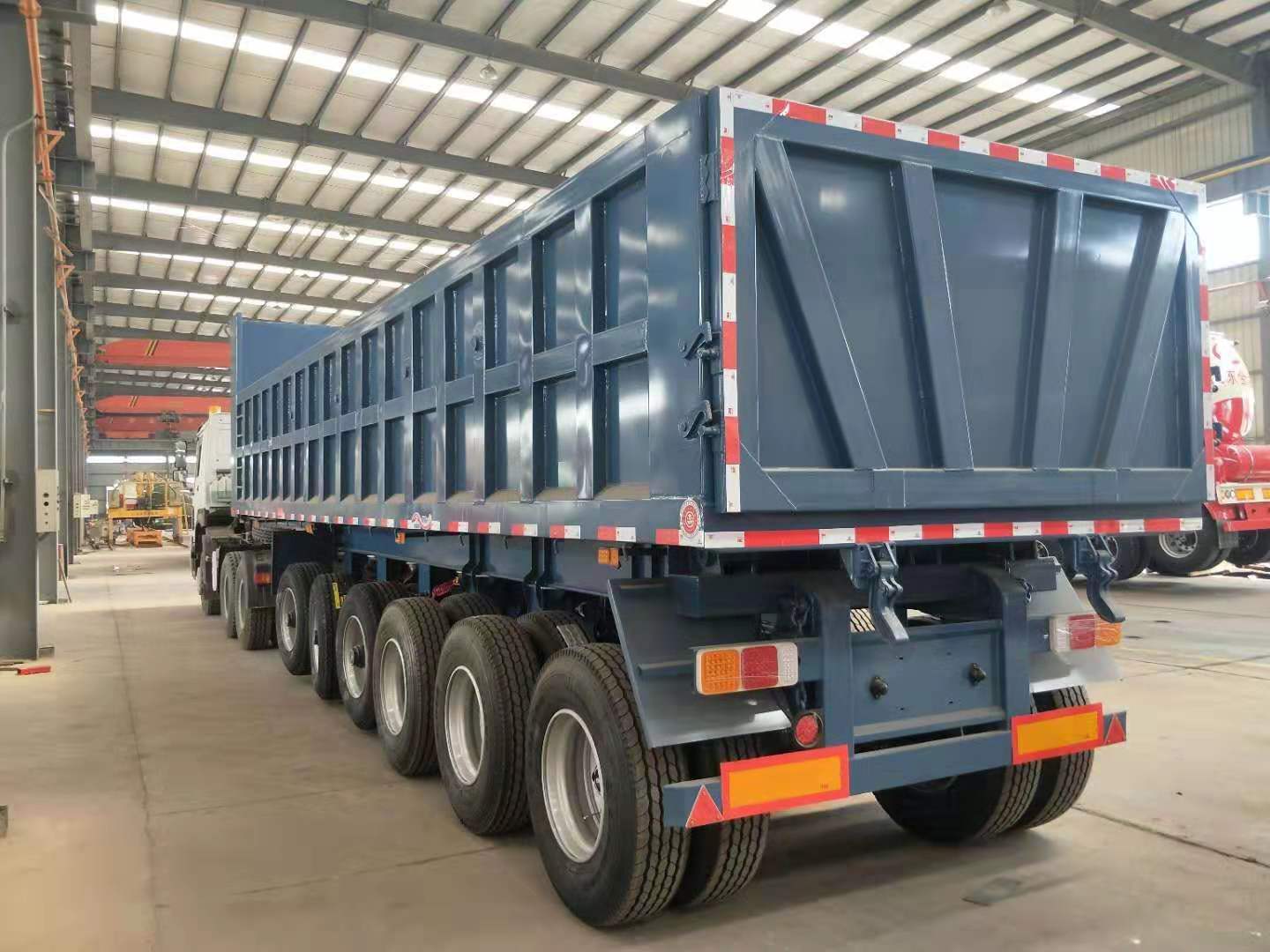

Multi axles dump semi trailer

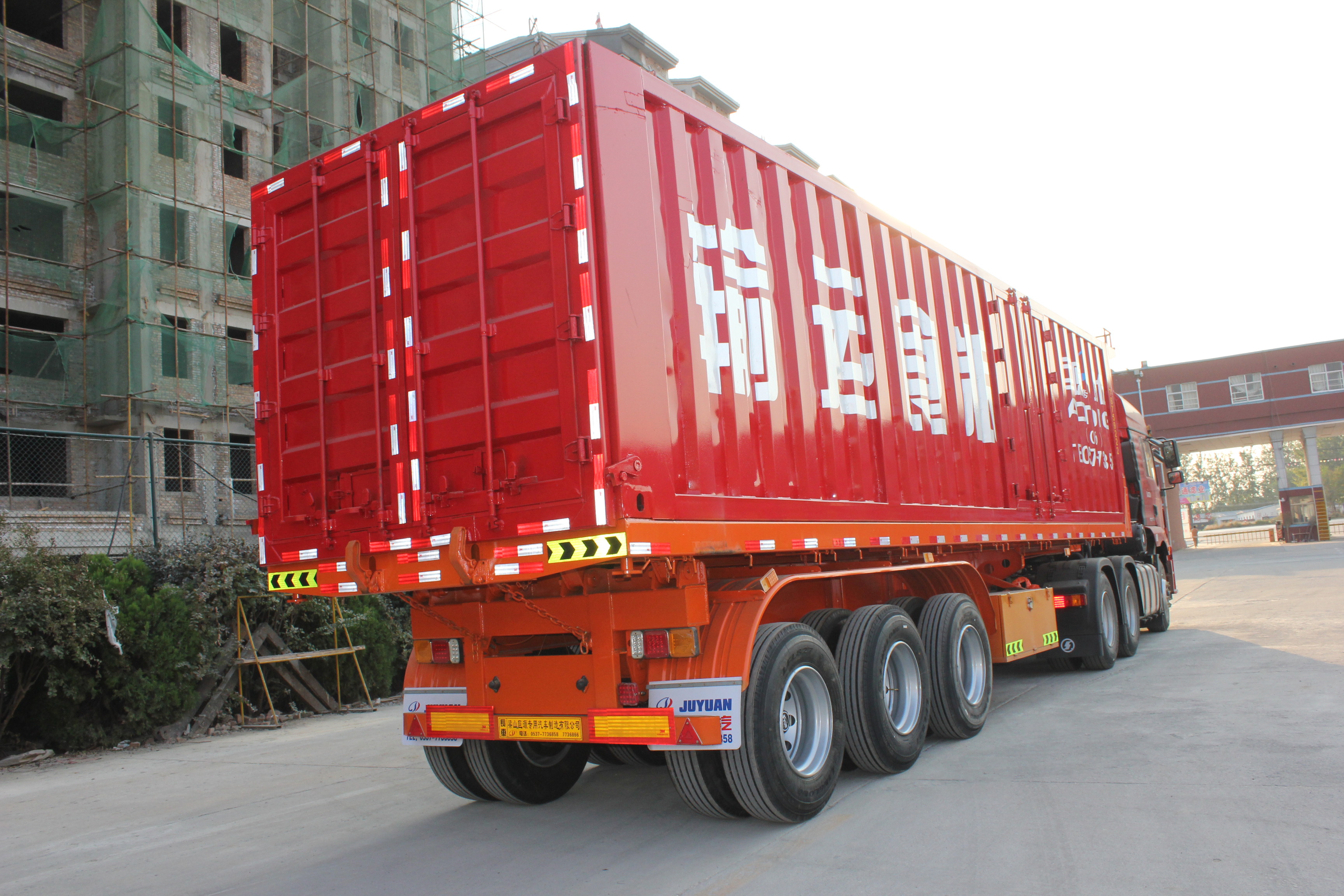

Rear dump flatbed semi trailer with detachable sidewall

Side dump semi trailer

Superlink side dump semi trailer

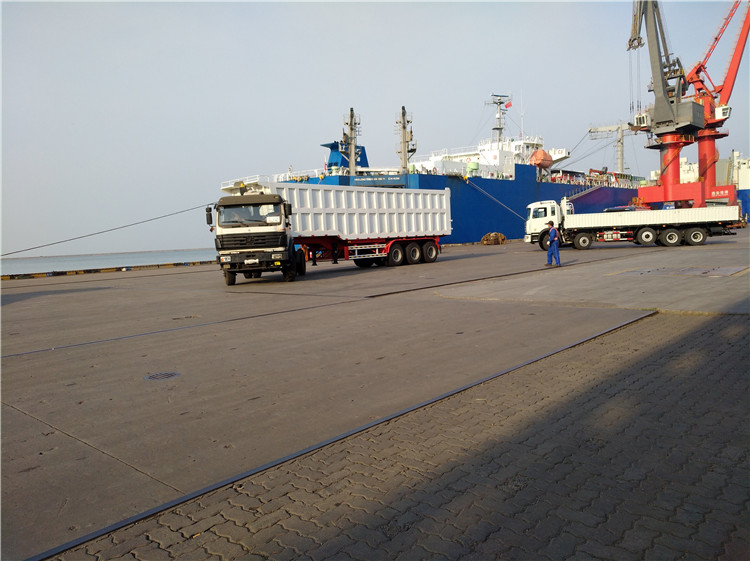

Packing&Shipping

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.

High quality painting and professional transportation ensure good condition of goods. We believe that we can win-win by providing detailed services.
