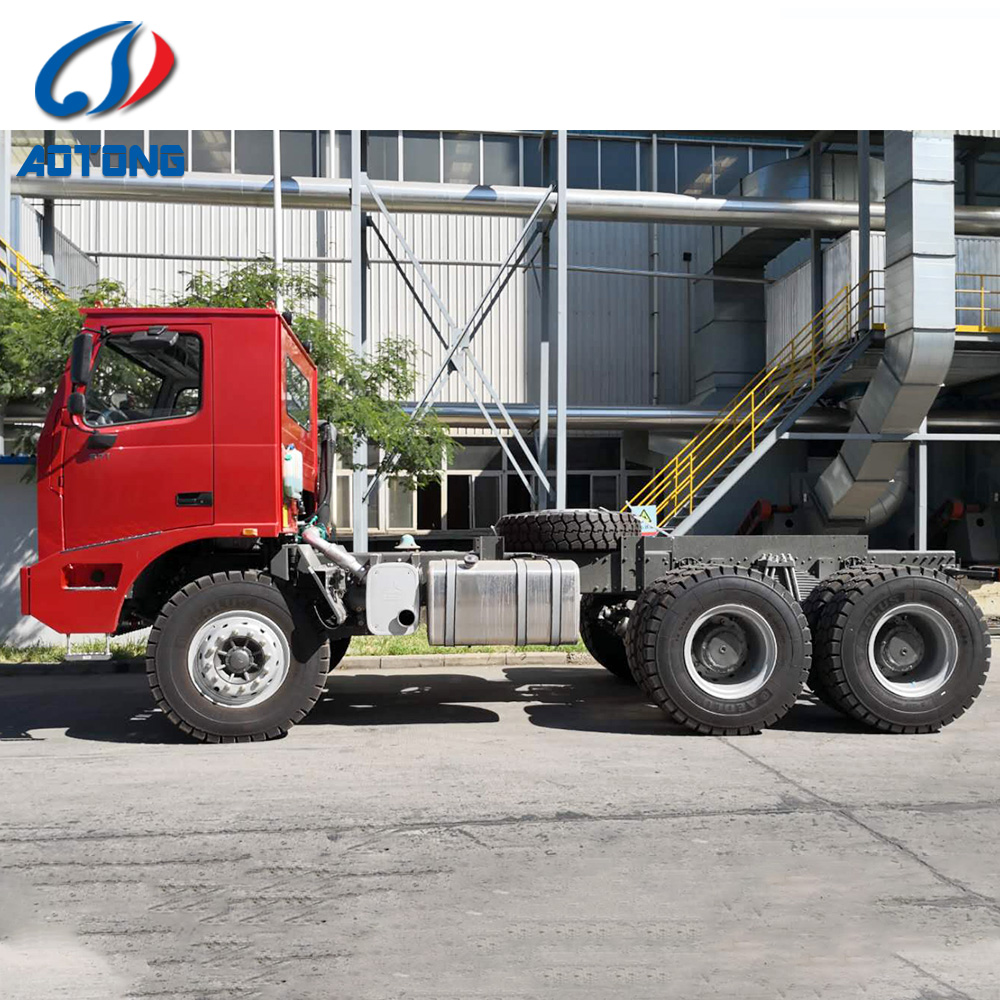

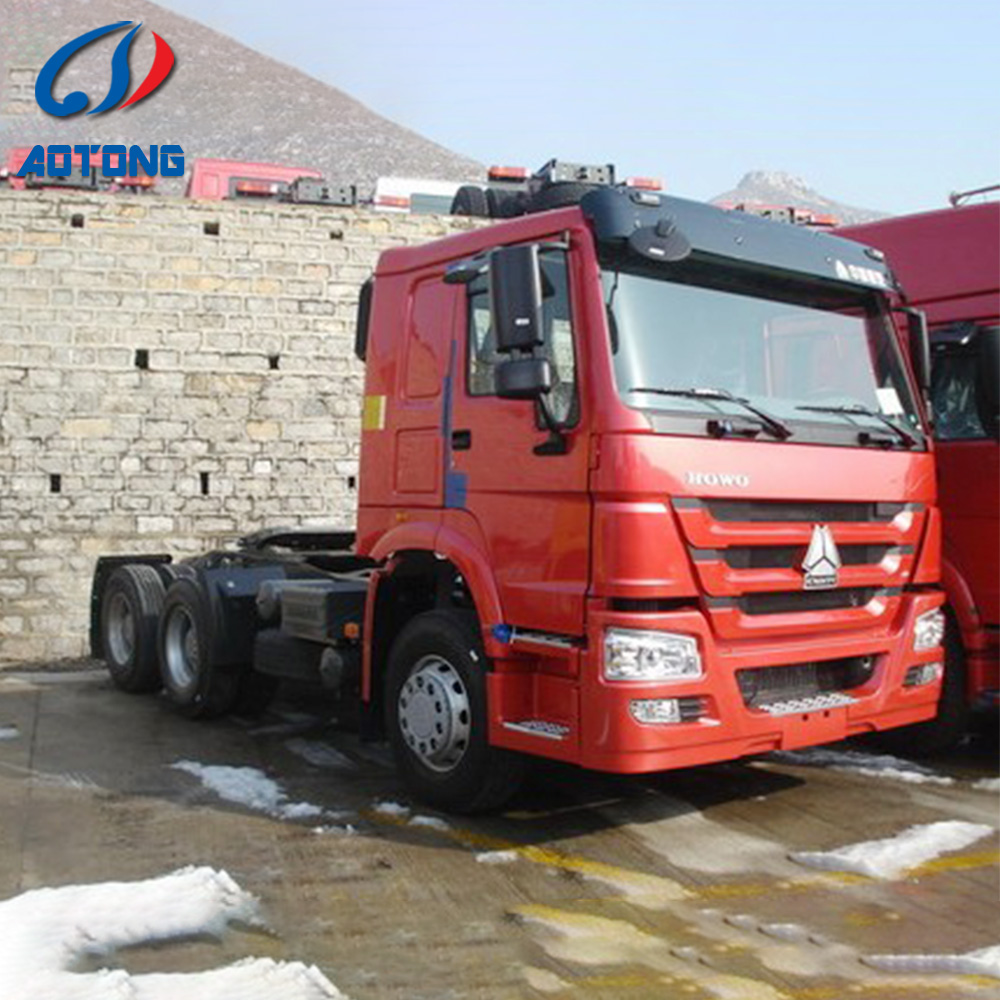

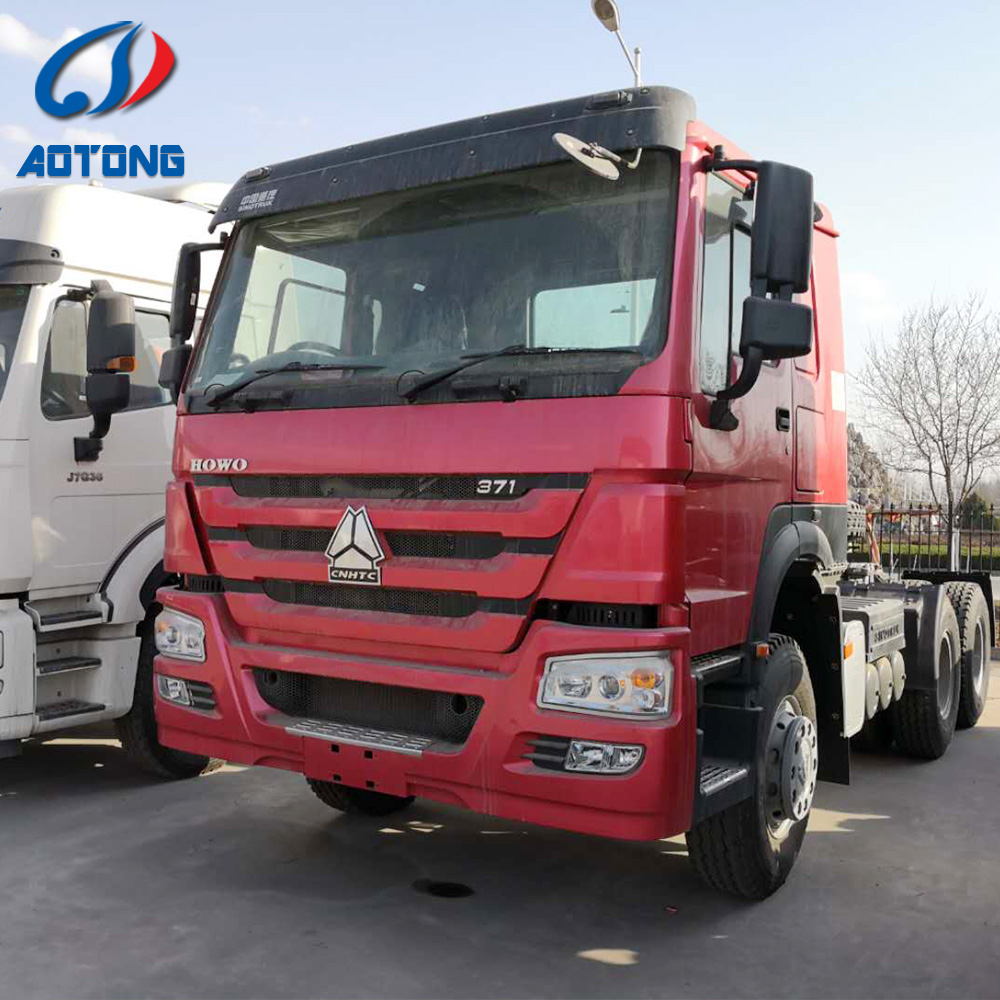

Logistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HP

Product Categories

Qingdao Juyuan International Trading Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Truck Model	ZZ4257S3241
Driving Style	Left/Right Hand Driving
Dimension(Lx W xH)(unloaded)(mm)	6800x2496x2958
Approaching angle/Departure angle(°)	16/70
Overhang(front/rear) (mm)	1500/725
Wheel base (mm)	3225+1350
Front track/ Rear track(mm)	2022/1830/1830mm
Max speed(km/h)	101
Curb weight(kg)	9180
Loading Weight(kg)	25000
Engine Model	Model WD615.47, water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Engine Fuel type	Diesel
Engine Horse Power, max(kw/rpm)	371HP
Engine Emission	EURO II
Fuel tanker capacity (L)	400L
Clutch	Φ430 pull-type diaphragm spring clutch
Transmission Model	HW19710, 10 forwards and 2 reverse
Brake system-Service brake	Dual circuit compressed air brake
Brake system-Parking brake	spring energy, compressed air operating on rear wheels
Brake system-Auxiliary brake	Engine exhaust brake
Steering system	Model ZF8098 hydraulic steering with power assistance
Front axle	HF9, 9 tons loading capacity
Rear axle	HC16, 16 tons loading capacity
Color	optional
Tire	1200R20, 10+1pcs
Electrical system-Battery	2X12V/165Ah
Electrical system-Alternator	28V-1500kw
Electrical system-Starter	7.5Kw/24V
Cab	HW76 cab one sleeper, with air-condition,4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc.

Logistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HP

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
CNC Flame Plasma Cutting Machine	GS	2	4.0	Acceptable
Press Machine	JC21-160	4	4.0	Acceptable
Hydraulic Plate Bender	WC67Y-200/4000	2	3.0	Acceptable
Hydraulic Pendulum Plate Shears	QC12Y-12*3200	2	3.0	Acceptable
Drilling Machine with Jointed Arm	ZN3050*16	4	4.0	Acceptable
Shaping Machine	BS6065	2	4.0	Acceptable
Universal Rotary Milling Machine	X6232	1	4.0	Acceptable
CNC Lathe	EL6140N	2	4.0	Acceptable
Saw Machine	GD4028N	2	5.0	Acceptable
Expander	ZX-3000	1	3.0	Acceptable
Rolling Machine	W11-4-200	2	3.0	Acceptable
Automatic Round Welding Machine	W11SNC-10-6500	1	4.0	Acceptable

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
Vernier Caliper	0.02 mm	2	3.0	Acceptable
Ultrasonic Thickness Gauge	SMART SENSOR	1	3.0	Acceptable
Sound Level Meter	AZ8928	1	3.0	Acceptable
